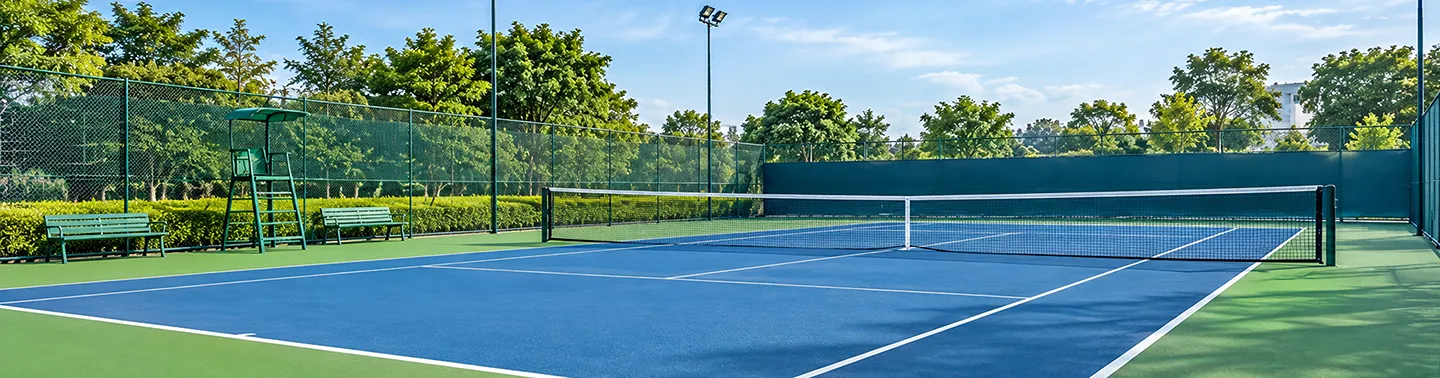

Lawn Tennis Court Setup, Flooring & Equipment

Build Better Lawn Tennis Spaces

Bodyline Sports delivers international tournament-standard lawn tennis courts with certified shock-absorbing flooring, durable posts, and precision equipment adhering to International Tennis Federation (ITF) guidelines.

Doubles Court

23.77 × 10.97 m (78 × 36 ft)

Singles Court

23.77 × 8.23 m (78 × 27 ft)

Net Height

0.914m Center (1.07m Posts)

Total Space

36.57 × 18.29 m (120 × 60 ft)

Sports Flooring Options

Lawn Tennis Court Setup by Bodyline Sports

Shop Lawn Tennis Equipment

Equip your court with official tournament-grade lawn tennis posts, movable systems, heavy-gauge steel ground-fixed posts, doubles tournament nets, rackets, and match balls.

Post (Portable & Movable)

Heavy Counterweight Base | Smooth Roll-away Wheels

View Details

Post (Ground Fixed)

Heavy Tubular Steel | In-Ground Sleeve Sockets

View Details

Lawn Tennis Net Double (Tournament Quality)

Double Net (Tournament)

ITF Official Standard | Double Mesh Top 6 Rows

View Details

Tennis Racket & Ball Set

Graphite Composite Frame & Match Balls

View Details

Match Tennis Balls

Pressurized Extra-Duty Felt | True Bounce

View Details

Post 80mm SQ Pipe

80mm Square Heavy Structural Steel | Brass Internal Winch

View Details

Frequently Asked Questions

Everything you need to know about professional lawn tennis court construction, acrylic vs turf vs modular surfaces, fixed vs movable post systems, and turnkey project timelines.

The official ITF playing boundary is 23.77 meters × 10.97 meters (78 ft × 36 ft) for Doubles and 23.77 meters × 8.23 meters (78 ft × 27 ft) for Singles. With mandatory run-off safety margins (6.40m behind baselines and 3.66m on sides), the total recommended plot size for a full tennis court is 36.57 meters × 18.29 meters (120 ft × 60 ft).

A 5-Layer Standard Acrylic Court offers a medium-fast hard court surface with exceptional UV resistance and crisp ball bounce. An 8-Layer Cushioned Acrylic System incorporates multiple liquid rubber cushion coats underneath the textured color wear layers, providing 20% to 25% force reduction and shock absorption to protect players' knees and ankles during long matches.

80mm Square Fixed Posts are permanently socketed into ground concrete sleeves with internal brass gear winches for tournament-tension net support. Movable Tennis Posts feature weighted heavy steel bases with non-marking wheels, allowing them to be rolled away in multi-sport arenas or exhibition halls without drilling holes into the court slab.

UV-resistant Synthetic Acrylic Surfacing and Modular Self-Draining PP Interlocking Tiles are the most durable for outdoor conditions. Both surfaces feature 100% weather resistance, non-glare pigments, and rapid rainwater drainage to prevent standing puddles and surface peeling.

Resurfacing an existing sound asphalt or concrete slab with multi-layer acrylic or PP tiles takes 5 to 7 working days. Complete turnkey court construction (civil base preparation with laser grading, perimeter chain-link fence, LED floodlights, posts, net, and multi-layer ITF surfacing) takes approximately 20 to 30 working days.

Yes! Bodyline Sports sports infrastructure executive conduct on-site evaluations across Kolkata, West Bengal, Bihar, Jharkhand, Odisha, and Northeast India. We provide customized 2D/3D CAD layout blueprints, gradient drainage plans, and transparent itemized estimates with zero upfront obligation.

Ready to construct your Tennis Court?

Speak directly with our Sports Infrastructure Expert's for technical advice & instant estimates.
